Tedana

-software -multi-echo -fmri -processing

Processing multi-echo fMRI data after it has been preprocessed by fmriprep

Author

Alexander Weber

Published

September 17, 2025

Modified

September 17, 2025

Intro

TE-dependent analysis (tedana) is a Python library for denoising multi-echo functional magnetic resonance imaging (fMRI) data. tedana originally came about as a part of the ME-ICA pipeline, although it has since diverged. An important distinction is that while the ME-ICA pipeline originally performed both pre-processing and TE-dependent analysis of multi-echo fMRI data, tedana now assumes that you’re working with data which has been previously preprocessed.

https://github.com/ME-ICA/tedana-reliability-analysis/blob/0f745dfb8d53aa6d2d73d326821c4f08232a0b36/collect_fmriprep.py

Documentation

https://tedana.readthedocs.io/en/stable/

Install

Dependencies

there is a lot you’ll want installed before starting

docker
miniconda
git
jq
dcm2niix
freesurfer (with license)
FastSurfer (if you want to speed things up)
a bunch of python scripts installed in a virtual environment (see below)
bids-validator
ANTs

With miniconda3 installed, you should consider using a virtual environment. Here is an example of how to create, start/activate, then install some python libraries

conda create -n tedana python=3 pip mdp numpy scikit-learn scipy
conda activate tedana
pip install nilearn nibabel
pip install tedana
pip install dcm2bids # if not already installed
pip install fmriprep-docker # if not already installed

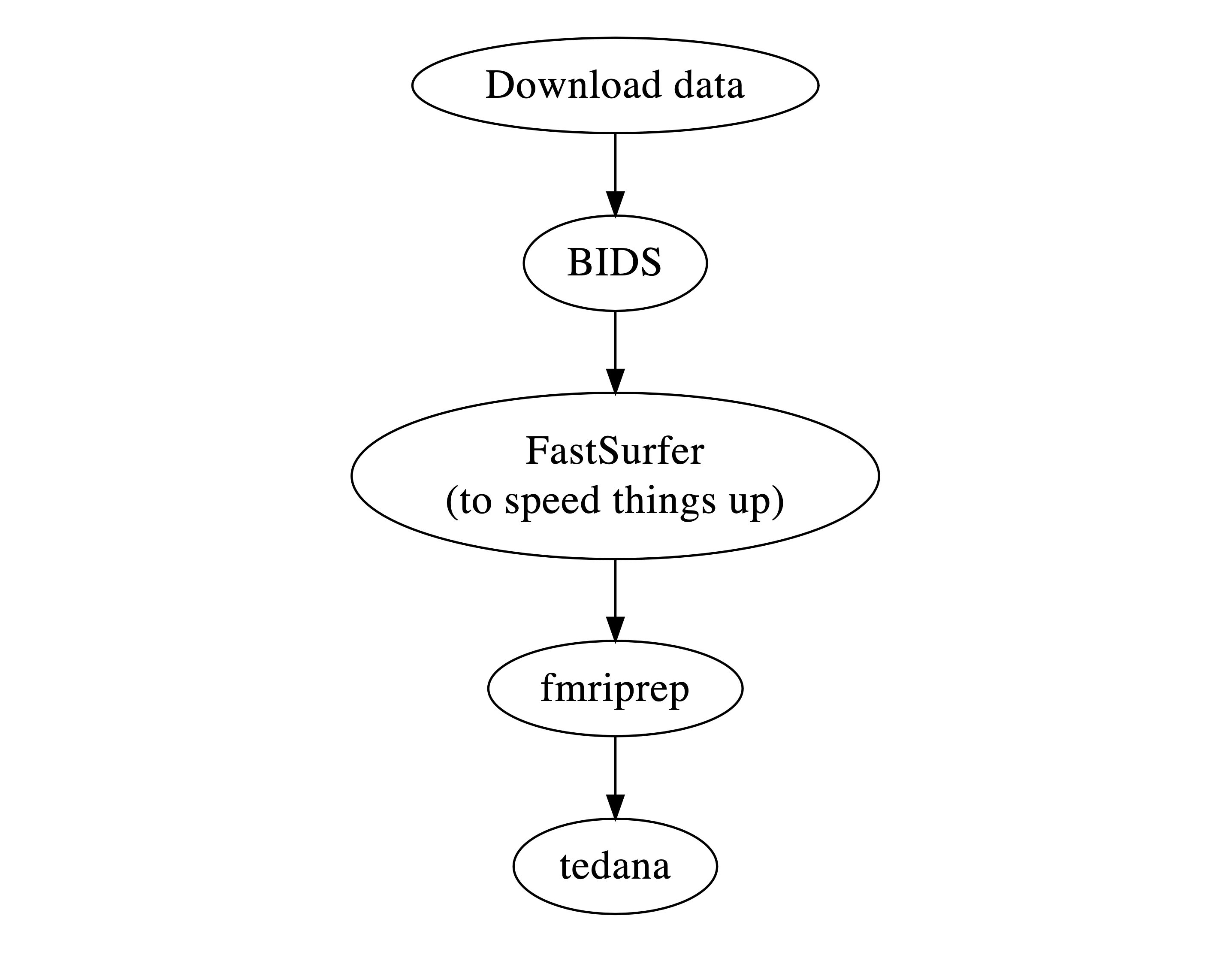

Overview of steps:

For preprocessing with fmriprep see our example analysis in multi-echo fMRI

Run

After running the preprocessing:

get echo times:

subid=Pilot02
echo1=$(cat sub-${subid}/func/sub-${subid}_task-rest_echo-1_bold.json | jq -r '.EchoTime')
echo2=$(cat sub-${subid}/func/sub-${subid}_task-rest_echo-2_bold.json | jq -r '.EchoTime')
echo3=$(cat sub-${subid}/func/sub-${subid}_task-rest_echo-3_bold.json | jq -r '.EchoTime')

then:

tedana -d derivatives/fmriprep/sub-${subid}/func/sub-${subid}_task-rest_echo-1_desc-preproc_bold.nii.gz derivatives/fmriprep/sub-${subid}/func/sub-${subid}_task-rest_echo-2_desc-preproc_bold.nii.gz derivatives/fmriprep/sub-${subid}/func/sub-${subid}_task-rest_echo-3_desc-preproc_bold.nii.gz -e $echo1 $echo2 $echo3 --out-dir derivatives/tedana/sub-${subid} --debug

Takes 2 mins

Results

Your derivatives folder should now contain the following directories:

.
├── FastSurfer
│   ├── fsaverage
│   │   ├── label
│   │   ├── mri
│   │   │   ├── orig
│   │   │   └── transforms
│   │   │       └── bak
│   │   ├── mri.2mm
│   │   ├── scripts
│   │   ├── surf
│   │   └── xhemi
│   │       ├── bem
│   │       ├── label
│   │       ├── mri
│   │       │   ├── orig
│   │       │   └── transforms
│   │       │       └── bak
│   │       ├── scripts
│   │       ├── src
│   │       ├── stats
│   │       ├── surf
│   │       ├── tmp
│   │       ├── touch
│   │       └── trash
│   └── sub-Pilot02
│       ├── label
│       ├── mri
│       │   ├── orig
│       │   ├── tmp
│       │   └── transforms
│       │       └── bak
│       ├── scripts
│       ├── stats
│       ├── surf
│       ├── tmp
│       ├── touch
│       └── trash
├── fmriprep
│   ├── logs
│   └── sub-Pilot02
│       ├── anat
│       ├── figures
│       ├── fmap
│       ├── func
│       └── log
└── tedana
    └── sub-Pilot02
        └── figures

FastSurfer

Inside FastSurfer the files your probably interested in are in the mri folder

.
├── antsdn.brain.mgz
├── aparc.a2009s+aseg.mgz
├── aparc+aseg.mgz -> aparc.DKTatlas+aseg.mapped.mgz
├── aparc.DKTatlas+aseg.deep.mgz
├── aparc.DKTatlas+aseg.deep.withCC.mgz
├── aparc.DKTatlas+aseg.mapped.mgz
├── aparc.DKTatlas+aseg.mgz -> aparc.DKTatlas+aseg.mapped.mgz
├── aparc.DKTatlas+aseg.orig.mgz
├── aseg.auto.mgz
├── aseg.auto_noCCseg.mgz
├── aseg.mgz
├── aseg.presurf.hypos.mgz
├── aseg.presurf.mgz
├── brain.finalsurfs.mgz
├── brainmask.auto.mgz
├── brainmask.mgz
├── brain.mgz
├── filled.auto.mgz
├── filled.mgz
├── filled-pretess127.mgz
├── filled-pretess255.mgz
├── lh.ribbon.mgz
├── lh.surface.defects.mgz
├── mask.mgz
├── norm.mgz
├── nu.mgz
├── orig
│   └── 001.mgz
├── orig.mgz
├── orig_nu.mgz
├── rawavg.mgz -> orig.mgz
├── rh.ribbon.mgz
├── rh.surface.defects.mgz
├── ribbon.mgz
├── segment.dat
├── T1.mgz
├── talairach.label_intensities.txt
├── tmp
├── transforms
│   ├── bak
│   ├── cc_up.lta
│   ├── talairach.auto.xfm
│   ├── talairach.auto.xfm.lta
│   ├── talairach_avi.log
│   ├── talairach.lta -> talairach.xfm.lta
│   ├── talairach.m3z
│   ├── talairach_with_skull.lta -> talairach.xfm.lta
│   ├── talairach.xfm
│   ├── talairach.xfm.lta
│   └── talsrcimg_to_711-2C_as_mni_average_305_t4_vox2vox.txt
├── wm.asegedit.mgz
├── wm.mgz
├── wmparc.DKTatlas.mapped.mgz
├── wmparc.mgz -> wmparc.DKTatlas.mapped.mgz
└── wm.seg.mgz

An overview of the output files can be found here. I highly recommend going through that tutorial.

fmriprep

fmriprep ouput:

.
├── dataset_description.json
├── desc-aparcaseg_dseg.tsv
├── desc-aseg_dseg.tsv
├── logs
│   ├── CITATION.bib
│   ├── CITATION.html
│   ├── CITATION.md
│   └── CITATION.tex
├── sub-Pilot02
│   ├── anat
│   │   ├── sub-Pilot02_desc-aparcaseg_dseg.nii.gz
│   │   ├── sub-Pilot02_desc-aseg_dseg.nii.gz
│   │   ├── sub-Pilot02_desc-brain_mask.json
│   │   ├── sub-Pilot02_desc-brain_mask.nii.gz
│   │   ├── sub-Pilot02_desc-preproc_T1w.json
│   │   ├── sub-Pilot02_desc-preproc_T1w.nii.gz
│   │   ├── sub-Pilot02_dseg.nii.gz
│   │   ├── sub-Pilot02_from-fsnative_to-T1w_mode-image_xfm.txt
│   │   ├── sub-Pilot02_from-MNI152NLin2009cAsym_to-T1w_mode-image_xfm.h5
│   │   ├── sub-Pilot02_from-MNI152NLin6Asym_to-T1w_mode-image_xfm.h5
│   │   ├── sub-Pilot02_from-T1w_to-fsnative_mode-image_xfm.txt
│   │   ├── sub-Pilot02_from-T1w_to-MNI152NLin2009cAsym_mode-image_xfm.h5
│   │   ├── sub-Pilot02_from-T1w_to-MNI152NLin6Asym_mode-image_xfm.h5
│   │   ├── sub-Pilot02_hemi-L_inflated.surf.gii
│   │   ├── sub-Pilot02_hemi-L_midthickness.surf.gii
│   │   ├── sub-Pilot02_hemi-L_pial.surf.gii
│   │   ├── sub-Pilot02_hemi-L_smoothwm.surf.gii
│   │   ├── sub-Pilot02_hemi-R_inflated.surf.gii
│   │   ├── sub-Pilot02_hemi-R_midthickness.surf.gii
│   │   ├── sub-Pilot02_hemi-R_pial.surf.gii
│   │   ├── sub-Pilot02_hemi-R_smoothwm.surf.gii
│   │   ├── sub-Pilot02_label-CSF_probseg.nii.gz
│   │   ├── sub-Pilot02_label-GM_probseg.nii.gz
│   │   ├── sub-Pilot02_label-WM_probseg.nii.gz
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_desc-brain_mask.json
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_desc-brain_mask.nii.gz
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_desc-preproc_T1w.json
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_desc-preproc_T1w.nii.gz
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_dseg.nii.gz
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_label-CSF_probseg.nii.gz
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_label-GM_probseg.nii.gz
│   │   └── sub-Pilot02_space-MNI152NLin2009cAsym_label-WM_probseg.nii.gz
│   ├── figures
│   │   ├── sub-Pilot02_desc-about_T1w.html
│   │   ├── sub-Pilot02_desc-conform_T1w.html
│   │   ├── sub-Pilot02_desc-reconall_T1w.svg
│   │   ├── sub-Pilot02_desc-summary_T1w.html
│   │   ├── sub-Pilot02_dseg.svg
│   │   ├── sub-Pilot02_fmapid-auto00000_desc-pepolar_fieldmap.svg
│   │   ├── sub-Pilot02_space-MNI152NLin2009cAsym_T1w.svg
│   │   ├── sub-Pilot02_space-MNI152NLin6Asym_T1w.svg
│   │   ├── sub-Pilot02_task-rest_desc-aroma_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-bbregister_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-carpetplot_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-compcorvar_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-confoundcorr_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-rois_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-sdc_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-summary_bold.html
│   │   ├── sub-Pilot02_task-rest_desc-t2scomp_bold.svg
│   │   ├── sub-Pilot02_task-rest_desc-t2starhist_bold.svg
│   │   └── sub-Pilot02_task-rest_desc-validation_bold.html
│   ├── fmap
│   │   ├── sub-Pilot02_fmapid-auto00000_desc-coeff_fieldmap.nii.gz
│   │   ├── sub-Pilot02_fmapid-auto00000_desc-epi_fieldmap.nii.gz
│   │   ├── sub-Pilot02_fmapid-auto00000_desc-preproc_fieldmap.json
│   │   └── sub-Pilot02_fmapid-auto00000_desc-preproc_fieldmap.nii.gz
│   ├── func
│   │   ├── sub-Pilot02_task-rest_AROMAnoiseICs.csv
│   │   ├── sub-Pilot02_task-rest_desc-confounds_timeseries.json
│   │   ├── sub-Pilot02_task-rest_desc-confounds_timeseries.tsv
│   │   ├── sub-Pilot02_task-rest_desc-MELODIC_mixing.tsv
│   │   ├── sub-Pilot02_task-rest_echo-1_desc-preproc_bold.json
│   │   ├── sub-Pilot02_task-rest_echo-1_desc-preproc_bold.nii.gz
│   │   ├── sub-Pilot02_task-rest_echo-2_desc-preproc_bold.json
│   │   ├── sub-Pilot02_task-rest_echo-2_desc-preproc_bold.nii.gz
│   │   ├── sub-Pilot02_task-rest_echo-3_desc-preproc_bold.json
│   │   ├── sub-Pilot02_task-rest_echo-3_desc-preproc_bold.nii.gz
│   │   ├── sub-Pilot02_task-rest_from-scanner_to-T1w_mode-image_xfm.txt
│   │   ├── sub-Pilot02_task-rest_from-T1w_to-scanner_mode-image_xfm.txt
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_boldref.nii.gz
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_desc-aparcaseg_dseg.nii.gz
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_desc-aseg_dseg.nii.gz
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_desc-brain_mask.json
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_desc-brain_mask.nii.gz
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_desc-preproc_bold.json
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_T2starmap.json
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin2009cAsym_T2starmap.nii.gz
│   │   ├── sub-Pilot02_task-rest_space-MNI152NLin6Asym_desc-smoothAROMAnonaggr_bold.json
│   │   └── sub-Pilot02_task-rest_space-MNI152NLin6Asym_desc-smoothAROMAnonaggr_bold.nii.gz
│   └── log
│       └── 20221118-015253_b74f70bf-bc7f-455b-959a-43d1c3268b1c
│           └── fmriprep.toml
└── sub-Pilot02.html

a rundown of these outputs can be found in more depth here

You can view the very nice boilerplate of results by opening up the sub-Pilot02.html file

Tedana

.
└── sub-Pilot02
    ├── dataset_description.json
    ├── desc-adaptiveGoodSignal_mask.nii.gz
    ├── desc-ICAAccepted_components.nii.gz
    ├── desc-ICAAccepted_stat-z_components.nii.gz
    ├── desc-ICA_components.nii.gz
    ├── desc-ICA_decomposition.json
    ├── desc-ICA_mixing.tsv
    ├── desc-ICA_stat-z_components.nii.gz
    ├── desc-optcomAccepted_bold.nii.gz
    ├── desc-optcom_bold.nii.gz
    ├── desc-optcomDenoised_bold.nii.gz
    ├── desc-optcomRejected_bold.nii.gz
    ├── desc-PCA_decomposition.json
    ├── desc-PCA_metrics.json
    ├── desc-PCA_metrics.tsv
    ├── desc-PCA_mixing.tsv
    ├── desc-PCA_stat-z_components.nii.gz
    ├── desc-tedana_metrics.json
    ├── desc-tedana_metrics.tsv

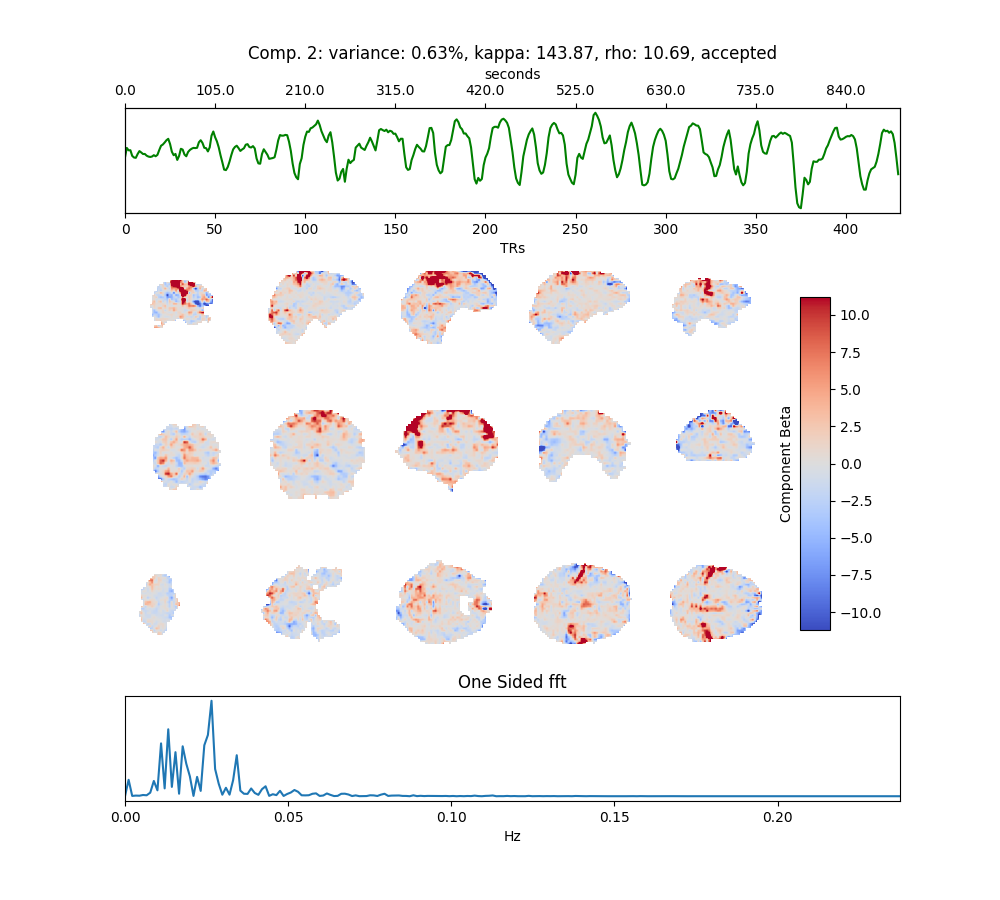

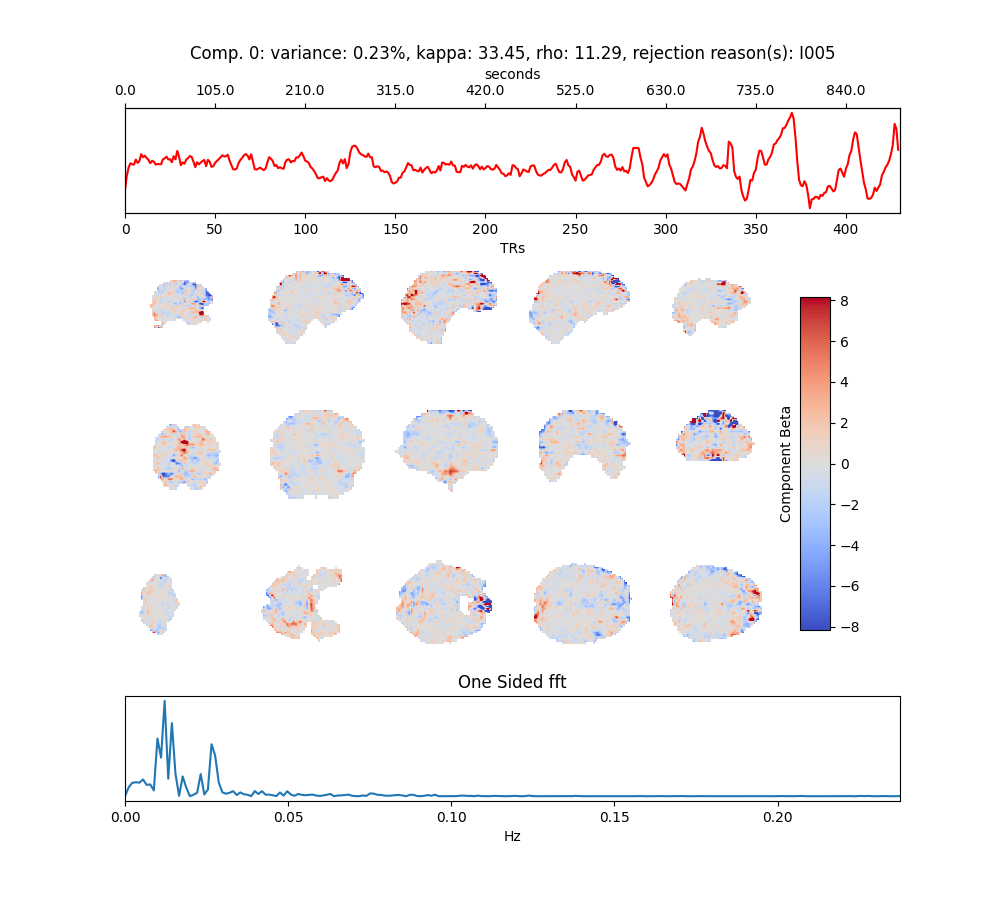

    ├── figures
    │   ├── carpet_accepted.svg
    │   ├── carpet_denoised.svg
    │   ├── carpet_optcom.svg
    │   ├── carpet_rejected.svg
    │   ├── comp_000.png
    │   ├── comp_001.png
    │   ├── comp_002.png
    │   ├── comp_003.png
    │   ├── comp_004.png
    │   ├── comp_005.png
    │   ├── comp_006.png
    │   ├── comp_007.png
    │   ├── comp_008.png
    │   ├── comp_009.png
    │   ├── comp_010.png
    │   ├── comp_011.png
    │   ├── comp_012.png
    │   ├── comp_013.png
    │   ├── comp_014.png
    │   ├── comp_015.png
    │   ├── comp_016.png
    │   ├── comp_017.png
    │   ├── comp_018.png
    │   ├── comp_019.png
    │   ├── comp_020.png
    │   ├── comp_021.png
    │   ├── comp_022.png
    │   ├── comp_023.png
    │   ├── comp_024.png
    │   ├── comp_025.png
    │   ├── comp_026.png
    │   ├── comp_027.png
    │   ├── comp_028.png
    │   ├── comp_029.png
    │   ├── comp_030.png
    │   ├── comp_031.png
    │   ├── comp_032.png
    │   ├── comp_033.png
    │   ├── comp_034.png
    │   ├── comp_035.png
    │   ├── comp_036.png
    │   ├── comp_037.png
    │   ├── comp_038.png
    │   ├── comp_039.png
    │   ├── comp_040.png
    │   ├── comp_041.png
    │   ├── comp_042.png
    │   ├── comp_043.png
    │   ├── comp_044.png
    │   ├── comp_045.png
    │   ├── comp_046.png
    │   ├── comp_047.png
    │   ├── comp_048.png
    │   ├── comp_049.png
    │   ├── comp_050.png
    │   ├── comp_051.png
    │   ├── comp_052.png
    │   └── comp_053.png
    ├── report.txt
    ├── S0map.nii.gz
    ├── T2starmap.nii.gz
    ├── tedana_2022-11-18T111133.tsv
    └── tedana_report.html

A rundown of these outputs can be explored in more depth here

You can view the very nice boilerplate of results by opening up the sub-tedana_report.html file

firefox tedana_report.html &

Example of rejected component:

Example of accepted component:

I believe the file we would want to use for further analysis would be: desc-optcomDenoised_bold.nii.gz

Further Analysis

You might notice that Tedana is not in MNI space

We can fix that with ANTs. But first let’s downsample the T1 to make things faster:

fslmaths ${bidsdir}/derivatives/fmriprep/sub-${subid}/anat/sub-Pilot02_desc-preproc_T1w.nii.gz -subsamp2 ${bidsdir}/derivatives/fmriprep/sub-${subid}/anat/sub-Pilot02_desc-preproc_T1w_subsamp2.nii.gz

Now we can register to the downsample, and then to MNIspace:

antsApplyTransforms -d 3 -e 3 --float 1 --verbose 1 -i ${bidsdir}/derivatives/tedana/sub-${subid}/desc-optcomDenoised_bold.nii.gz -o ${bidsdir}/derivatives/tedana/sub-${subid}/desc-optcomDenoised_bold-to-T1.nii.gz -r ${bidsdir}/derivatives/fmriprep/sub-${subid}/anat/sub-Pilot02_desc-preproc_T1w_subsamp2.nii.gz -t ${bidsdir}/derivatives/fmriprep/sub-${subid}/func/sub-${subid}_task-rest_from-scanner_to-T1w_mode-image_xfm.txt
antsApplyTransforms -d 3 -e 3 --float 1 --verbose 1 -i ${bidsdir}/derivatives/tedana/sub-${subid}/desc-optcomDenoised_bold-to-T1.nii.gz -o ${bidsdir}/derivatives/tedana/sub-${subid}/desc-optcomDenoised_bold-to-MNI.nii.gz -r ${bidsdir}/derivatives/fmriprep/sub-${subid}/func/sub-${subid}_task-rest_space-MNI152NLin2009cAsym_T2starmap.nii.gz -t ${bidsdir}/derivatives/fmriprep/sub-${subid}/anat/sub-Pilot02_from-T1w_to-MNI152NLin2009cAsym_mode-image_xfm.h5
imrm ${bidsdir}/derivatives/fmriprep/sub-${subid}/anat/sub-Pilot02_desc-preproc_T1w_subsamp2.nii.gz
imrm ${bidsdir}/derivatives/tedana/sub-${subid}/desc-optcomDenoised_bold-to-T1.nii.gz

Tada

Full example here: https://hackmd.io/@weberam2/HypP3Pr8j

Denoising Data with Components

https://tedana.readthedocs.io/en/latest/denoising.html
